PRO³

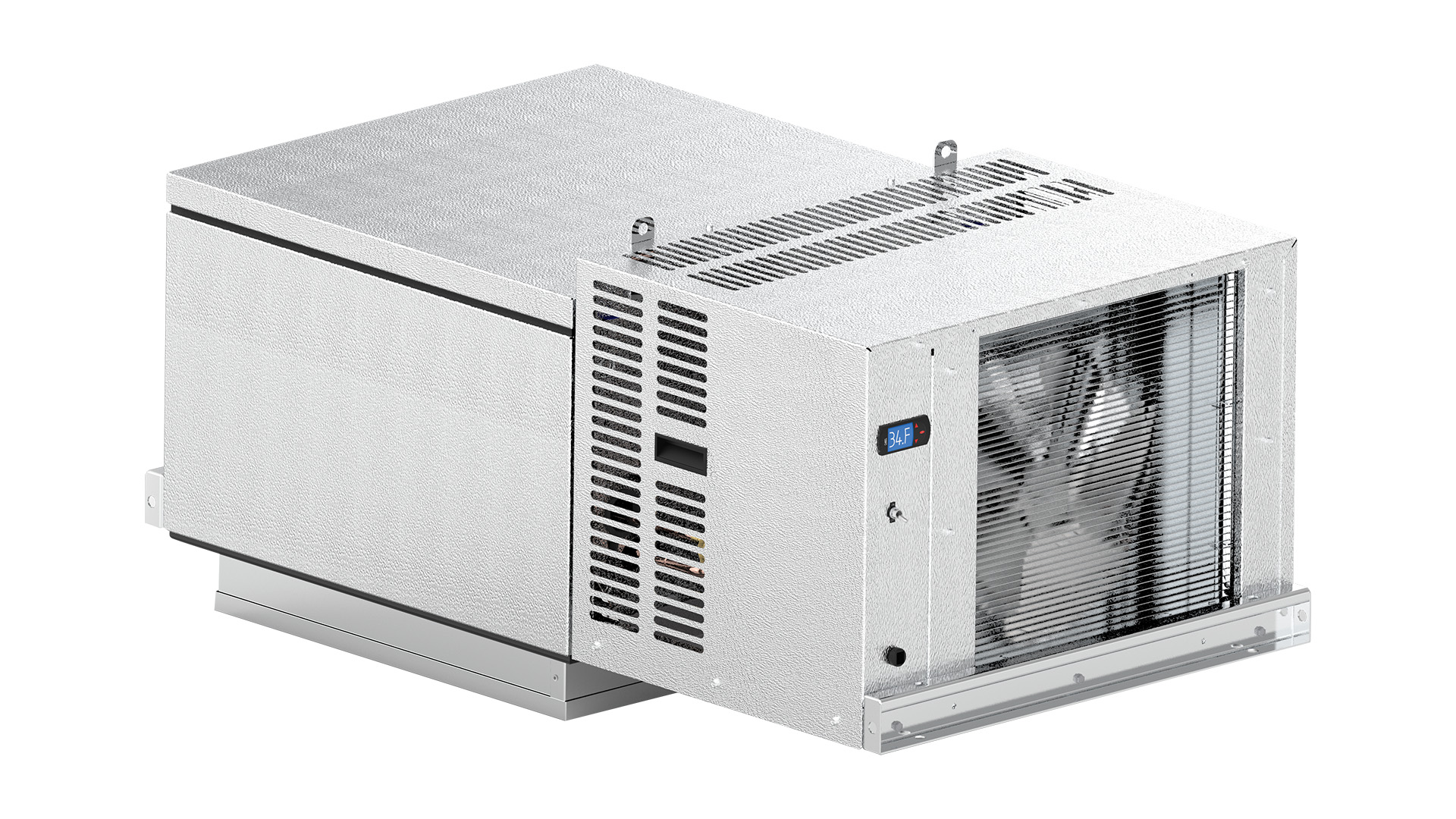

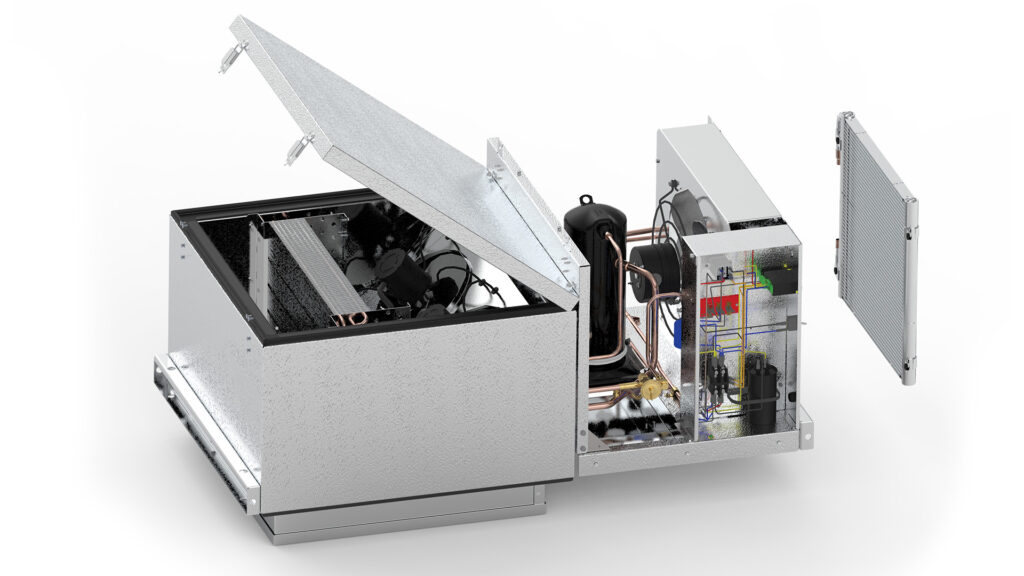

The PRO³ packaged Top Mount refrigeration system combines a unit cooler and condensing unit into one, expediting installation time and reducing refrigerant charge — which saves you time, money and energy. This packaged system is designed to mount on top of a walk-in box, increasing storage space inside walk-in coolers or freezers. It is ideal for small- to medium-sized restaurant and convenience store applications. The system is fully assembled, evacuated, charged, run-tested and wired at the factory.

PRO³ Packaged Refrigeration Systems

This Packaged System combines a unit cooler and condensing unit into one system for easy installation. It arrives assembled and ready for your convenience store or restaurant walk-in cooler or freezer.

3 – 22 HP Horizontal Air Discharge

3 to 22 HP air-cooled condensing units with Copeland and Bitzer Semi-Hermetic reciprocating or Scroll compressors provide flexibility and serviceability. We offer units for medium or low temperature applications, with either pre-configured option packages or custom configurations for specific applications. Piping connections are externally mounted, and each unit features removable cabinets for easy access to service components. Our designs are energy efficient, approved for use with multiple refrigerants; units are engineered to meet low GWP regulations.

Features

Aesthetics

Stucco-aluminum finish

Performance

Maximum vertical product storage capacity
Ideal for holding temperature
Medium-temp air and electric defrost
Low-temp electric defrost
Microprocessor control

ENVIRONMENTALLY FRIENDLY

Pre-charged with R-513A (P1 cabinet) & R-448A (P2 & P3 cabinet) refrigerant to meet CARB & US Climate Alliance requirements

RELIABLE | DURABLE

Liquid-line filter drier (Medium and large cabinet only)
Two-year parts warranty

ENERGY EFFICIENCY

P1 units use single speed EC Evaporator motors
P2 & P3 units use 2 speed EC Evaporator motors
P2 & P3 units use single speed EC Condenser motors (except PT0046M uses PSC)
P2 & P3 units use a Microchannel condenser for higher efficiency & corrosion protection

EASE OF INSTALLATION

Pre-charged with refrigerant
No refrigerant piping required
Evaporative condensate pan (indoor units only)
All units get a removable top panel with latches
All P1 & select P2 & P3 units come with a power cord

CONTROLS

Microprocessor control

24 – 100 HP Dual Vertical Air Discharge

24 to 100 HP vertical air discharge condensing units with Copeland and Bitzer dual Semi-Hermetic reciprocating compressors are designed for flexibility and serviceability. They can be configured as dual-circuited or parallel piped, and are ideal for medium or low temperature applications with either pre-configured option packages or custom configurations for specific applications. Each unit is approved for multiple refrigerants and can be configured to meet minimum AWEF, Title 24 or other regulations.
